Charging capacity |
Up to 7.5KW*2 |
|
Input/Output power |
240VAC-50/60Hz-32A*2-1phase |
|
RCD |
RCMU(Type A+ DC 6mA)/ Type B RCBB(Optional) |
|
Standby power |
<5W |
|
Measuring accuracy |
1% |
|
Energy Meter |
MID certified |
|
OCPP |
OCPP1.6 Json(OCPP2.0 optional) |
|
Communication |
WIFI/Ethernet/4G(Optional) |
|
User interface |
LCD 5" Touch Screen/ RFID(mifare iso& IEC 14443A) |
|
Certificate/Compliance |
CE/RCC/ROHS/REACH/IEC/EN 61851-1，IEC/EN61851-21-2, IEC/EN 62955, EN300328, EN 301489-1/-17,EN62479. |
|
Charging Interface |
Type 1 Gun(5M Cable) *2 |
|
Special Protection |
Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection |
|
Protection |
IP54, IK10 |
|
Enclosure |
Galvanized steel |
|
Front Panel |
Temper glass |
|

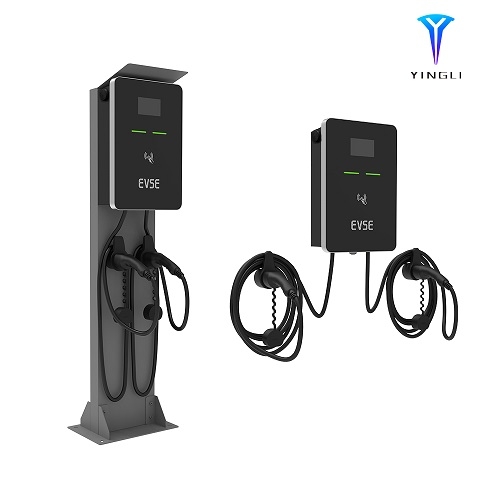

Installation |
Wall-mount/Pole-mount |
|
Cooling |
Natural cooling |
|
Operating temperature |
-30˚C to +55˚C |
|
Product Dimensions |
515*365*185(L*W*H)mm |
|
Product Weight |
13.5kg |
|
Package Dimension |
610*415*250(L*W*H)mm |
|
Gross Weight |
15kg |
