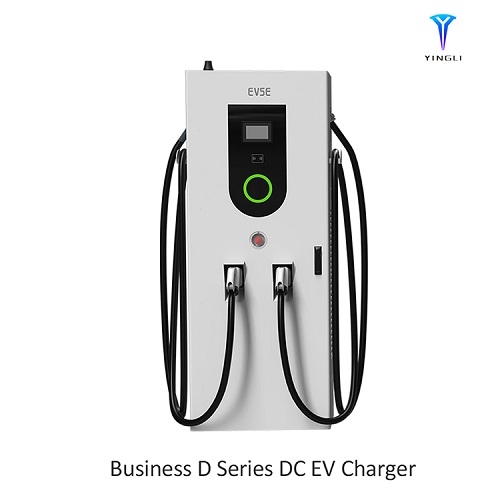

Charging capacity

Up to 120KW

Input/Output power

400VAC±10%-50/60Hz- 3phase

Power factor

0.98

Efficiency

>95%

Measuring accuracy

Level 0.5

Output voltage range

CCS: 300~1000VDC

Output current range

0-250A

Communication

PLC (between charger & vehicle)
Ethernet/4G/Wifi/OCPP 1.6J(optional)

User interface

LCD 7 inch Touch Screen / RFID card and APP

Certificate/Compliance

EN/IEC 61851-1: 2019, EN/IEC 61851-23: 2014

Energy Meter

PTB certified

RCD

Type A or Type B(optional)

Security design

Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection

DC Plugs

CCS 2Plugs 7M or 10M(Optional)

Cooling

Air cooled

IP Level

IP54

Sound noise

<70DB in all directions

Operating temperature

-20°C to +50°C

Product Dimensions

750*770*1900mm

Package Dimension

800*850*2000(L*W*H)mm Wooden packing
