Cable

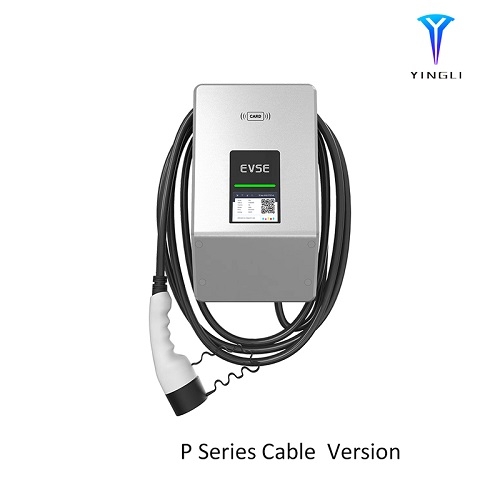

7KW Intelligent OCPP Commercial EV Charging Station with Cable

Yingli 7KW commercial use EV charger with specially designed appearance supports IP65 waterproof.
The charger supports OCPP 1.6 Json communication protocol with CMS Wireless communication Wi-Fi/Ethernet/4G, which is intelligent for use.

Main Features:
Power: 7kW
Output Current: 32A 1-Phase
Charging Outlet: 5M Cable with Type 2 gun (Customizable)
OCPP1.6 Json
RFID function,WIFI/4G/Ethernet(Optional)
Protection: IP54, IK10
Warranty: 2 years

    Charging capacity

    Up to 7KW

    Input/Output power

    240VAC±20%-50/60Hz-32A- 1phase

    RCD

    RCMU(Type A+ DC 6mA)/ Type B RCBB(Optional)

    Standby power

    <3W

    Measuring accuracy

    1%

    Energy Meter

    MID certified

    Load balancing

    CT+Meter(Optional)

    PEN Protection

    Optional

    OCPP

    OCPP1.6 Json(OCPP2.0 optional)

    Communication

    Bluetooth/WIFI/Ethernet/4G(Optional)

    User interface

    LED / LCD(3.5″) / RFID(mifare iso& IEC 14443A)

    Input Plug

    NEMA 14-50(Optional)

    Certificate/Compliance

    CE/RCC/ROHS/REACH/IEC/EN 61851-1IEC/EN61851-21-2, IEC/EN 62955, EN300328, EN 301489-1/-17,EN62479,UL 817, UL 991, UL 2231, UL 225, and UL 2594.

    Charging Interface

    Type 2 socket/ 5M Cable
    SAE J1772 32A 5M Cable (optional)

    Special Protection

    Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection

    Protection

    IP65, IK10

    Enclosure

    Plastic PC940/ Galvanized steel

    Front Panel

    Temper glass

    Installation

    Wall-mount/Pole-mount

    Cooling

    Natural cooling

    Operating temperature

    -30˚C to +55˚C

    Product Dimensions

    410*230*265(L*W*H)mm

    Product Weight

    8kg

    Package Dimension

     480*340*290(L*W*H)mm

    Gross Weight

    9kg
