Charging capacity |
Up to 7KW |
|
Input/Output power |
230VAC±20%-50/60Hz-32A- 1phase |
|
RCD |
RCMU(Type A+ DC 6mA)/ Type B RCBB(Optional) |
|
Standby power |
<3W |
|
Measuring accuracy |
1% |
|
Energy Meter |
MID certified |
|
OCPP |
OCPP1.6 Json(OCPP2.0 optional) |
|
Communication |
WIFI / Ethernet / 4G(Optional) |
|
User interface |
LED / LCD(3.5″) / RFID(mifare iso& IEC 14443A) |
|
Certificate/Compliance |
CE/RCC/ROHS/REACH/IEC/EN 61851-1，IEC/EN61851-21-2, |
|
Charging Interface |
Type 2 socket / 5M Cable |
|
Special Protection |
Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection |
|
Protection |
IP54, IK10 |
|
Enclosure |
Plastic PC940/ Galvanized steel |
|
Front Panel |
Temper glass |
|

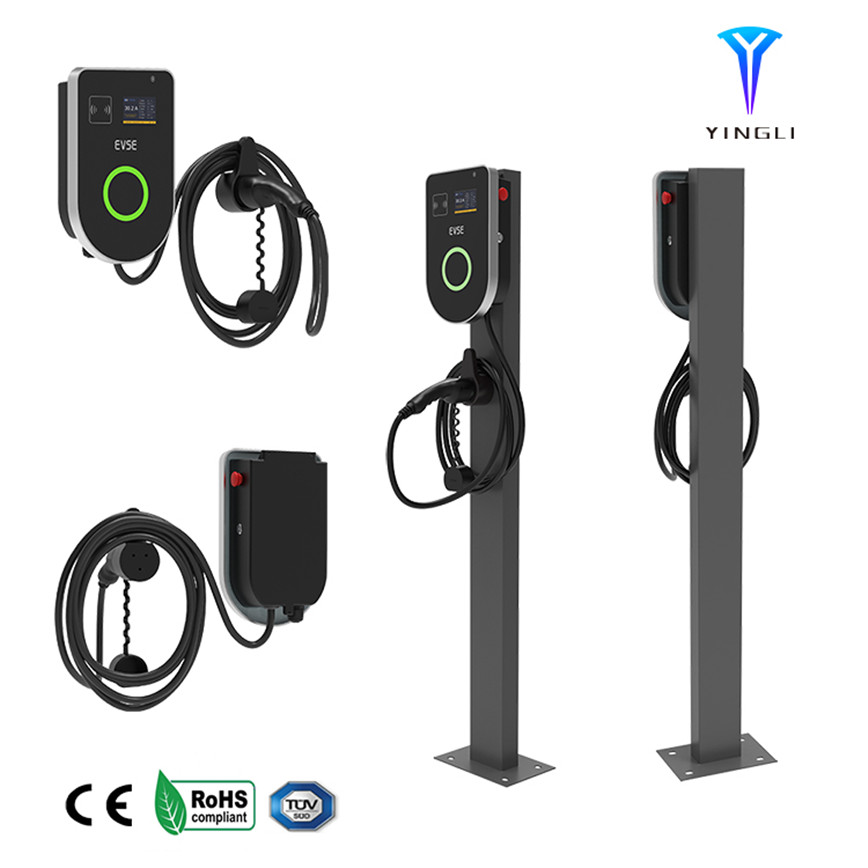

Installation |
Wall-mount/Pole-mount |
|
Cooling |
Natural cooling |
|
Operating temperature |
-30˚C to +55˚C |
|

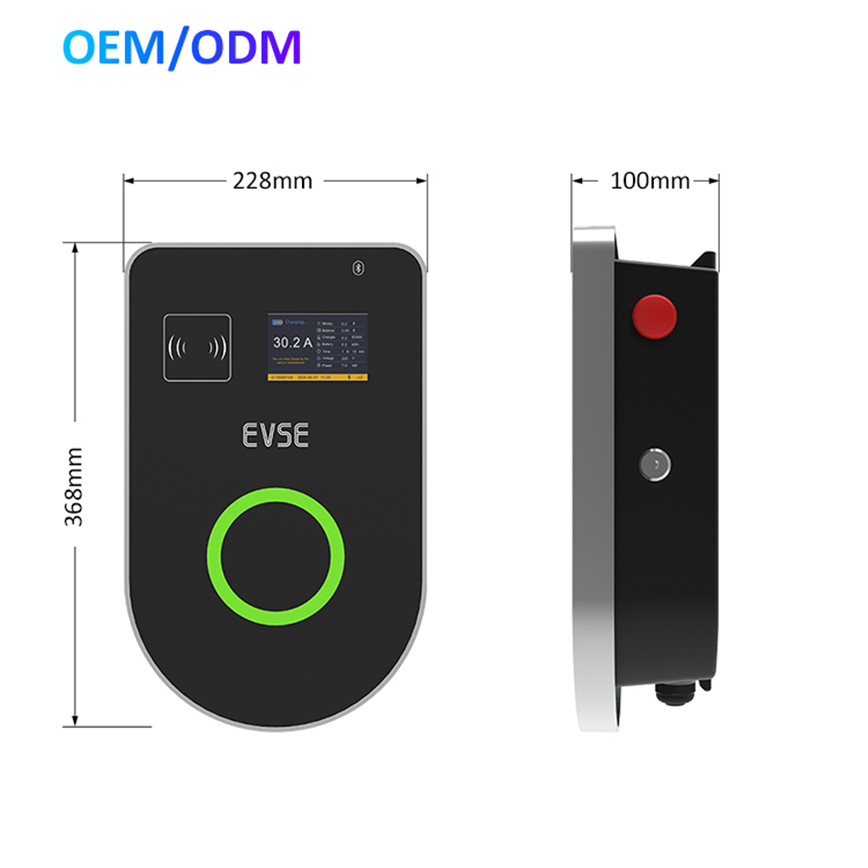

Product Dimensions |
320*230*100(L*W*H)mm |
|
Product Weight |
8kg |
|
Package Dimension |
480*340*290(L*W*H)mm |
|
Gross Weight |
9kg |
