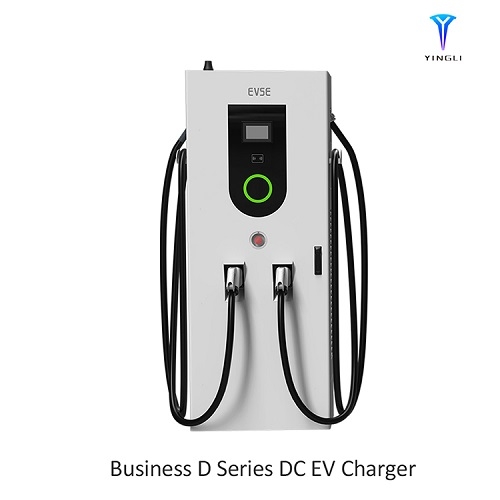

Double Guns Super DC Charger

60KW Super DC Fast Charging Station

Yingli 60KW super DC fast charging station with dual CCS outputs, which is widely used for electric bus charging.
LCD 7 inch touch screen for operating, friendly user interface with 4G/ Wi-Fi/ Ethernet communication and RFID card reader.

Main Features:
Power: 2*30kW
Charging Outlet: CCS 2 gun with 7M cable (Customizable)
PTB certified energy meter
RFID function,WIFI/4G/Ethernet(Optional)
Protection: IP54
Warranty: 2 years

    Charging capacity

    Up to 60KW

    Input/Output power

    400VAC±10%-50/60Hz- 3phase

    Power factor

    0.98

    Efficiency

    >95%

    Measuring accuracy

    Level 0.5

    Output voltage range

    CCS: 300~1000VDC

    Output current range

    0-180A

    Communication

    PLC (between charger & vehicle)
    Ethernet/4G/Wifi/OCPP 1.6J(optional)

    User interface

    LCD 7 inch Touch Screen / RFID card and APP

    Certificate/Compliance

    EN/IEC 61851-1: 2019, EN/IEC 61851-23: 2014

    Energy Meter

    PTB certified

    RCD

    Type A or Type B(optional)

    Security design

    Over/under voltage protection, overload protection, current leakage protection, grounding protection, lightening surge protection

    DC Plugs

    CCS 2Plugs 7M or 10M(Optional)

    Cooling

    Air cooled

    IP Level

    IP54

    Sound noise

    <70DB in all directions

    Operating temperature

    -20°C to +50°C

    Product Dimensions

    750*770*1900mm

    Package Dimension

    800*850*2000(L*W*H)mm Wooden packing
