Single Gun Mini DC Charger

40KW Mini DC Fast Charging Station

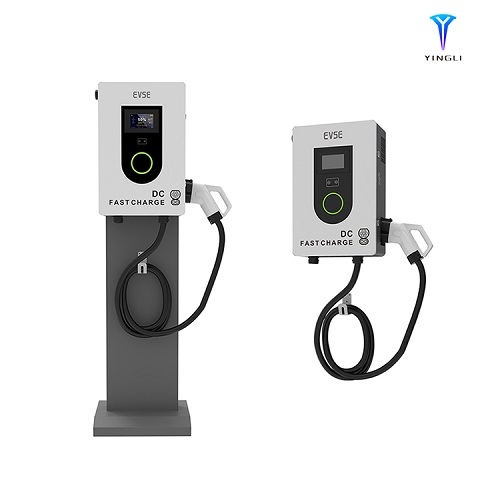

Yingli 40KW DC fast charging station can be fixed on wall or floor-mounted as an option.
It‘s 5-inch touch screen LCD and ring LED offer good display requirements for charging.

Main Features:
Power: 40kW
Charging Outlet: CCS 2 gun with 5M cable(Customizable)
PTB certified energy meter
RFID function,WIFI/4G/Ethernet(Optional)
Protection: IP54
Warranty: 2 years

    Charging capacity

    Up to 40KW

    Input/Output power

    400VAC±10%-50/60Hz- 3phase

    Power factor

    0.98

    Efficiency

    >93%

    Measuring accuracy

    Level 0.5

    Output voltage range

    CCS: 300~1000VDC

    Output current range

    0-53A

    Communication

    Ethernet/WIFI/4G/OCPP 1.6 Json (OCPP 2.0 optional)

    User interface

    RFID card and APP

    Display

    LCD 5 inch Touch Screen

    Certificate/Compliance

    CE/RCC/ROHS/REACH/IEC/EN 61851-1IEC/EN61851-21-2, IEC/EN 62955, EN300328, EN 301489-1/-17,EN62479.

    Energy Meter

    PTB certified

    RCD

    Type A or Type B(optional)

    Security design

    Over/under voltage protection, overload protection, current leakage protection, grounding protection,lightening surge protection

    DC Plugs

    CCS2 5M Cable

    Application place

    Indoor / outdoor

    Installation method

    Wall mount, pedestal mount (optional)

    Sound noise

    <55DB in all directions

    Operating temperature

    -20°C to +50°C

    Product Dimensions

    620*410*205(L*W*H)mm

    Product Weight

    45kg

    Package Dimension

    870*555*505(L*W*H)mm

    Gross Weight

    50kg
