Charging capacity
|
Up to 44KW(22KW*2)
|
|
Input/Output power
|
400VAC±20%-50/60Hz- 32A*2-3phase
|
|
RCD
|
RCMU(Type A+ DC 6mA)/ Type B RCBB(Optional)
|
|
Standby power
|
<5W
|
|
Measuring accuracy
|
1%
|
|
Energy Meter
|
MID certified
|
|
OCPP
|
OCPP1.6 Json(OCPP2.0 optional)
|
|
Communication
|
WIFI / Ethernet / 4G(Optional)
|
|
User interface
|
LCD 5" Touch Screen/ RFID(mifare iso& IEC 14443A)
|
|
Certificate/Compliance
|
CE/RCC/ROHS/REACH/IEC/EN 61851-1，IEC/EN61851-21-2,
IEC/EN 62955, EN300328, EN 301489-1/-17,EN62479 |
|
Charging Interface
|
Type 2 socket*2
|
|
Special Protection
|
Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
|
|
Protection
|
IP54, IK10
|
|
Enclosure
|
Galvanized steel
|
|
Front Panel
|
Temper glass
|
|

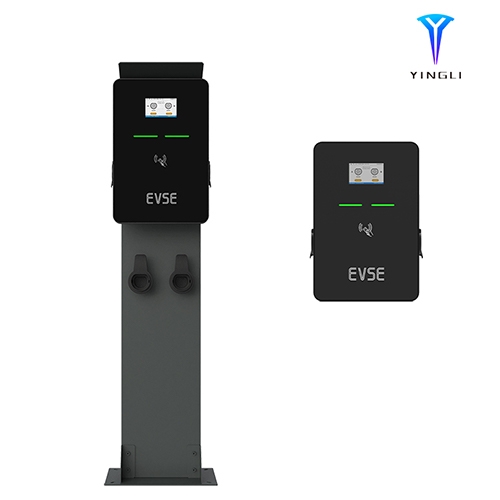

Installation
|
Wall-mount/Pole-mount
|
|
Cooling
|
Natural cooling
|
|
Operating temperature
|
-30˚C to +55˚C
|
|
Product Dimensions
|
515*365*185(L*W*H)mm
|
|
Product Weight
|
13.5kg
|
|
Package Dimension
|
610*415*250(L*W*H)mm
|
|
Gross Weight
|
15kg
|
