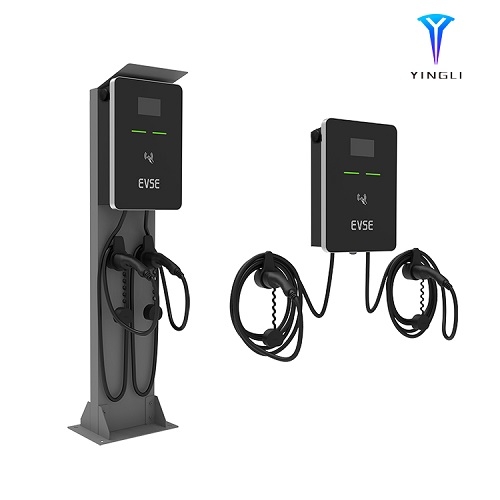

2*40A Level 2 Dual Plugs OCPP Business EV Charging Wallbox

This 2*40A business use EV Wallbox is designed for two electric vehicles charging at the same time. It can reduce the installation cost and meanwhile increase the using rate.
The charger supports OCPP 1.6 Json communication protocol with CMS Wireless communication Wi-Fi/Ethernet/4G, which is intelligent for use.

Main Features:
Power: Up to 9.6KW*2
Output Current: 2*40A 1-Phase
Charging Outlet: 5M Cable with Type1 gun(Customizable)
OCPP1.6 Json
RFID function,WIFI/4G/Ethernet(Optional)
Protection: IP54, IK10
Warranty: 2 years

    Charging capacity

    Up to 9.6KW*2

    Input/Output power

    240VAC-50/60Hz-40A*2-1phase

    RCD

    RCMU(Type A+ DC 6mA)/ Type B RCBB(Optional)

    Standby power

    <5W

    Measuring accuracy

    1%

    Energy Meter

    MID certified

    OCPP

    OCPP1.6 Json(OCPP2.0 optional)

    Communication

    WIFI/Ethernet/4G(Optional)

    User interface

    LCD 5" Touch Screen/ RFID(mifare iso& IEC 14443A)

    Certificate/Compliance

    CE/RCC/ROHS/REACH/IEC/EN 61851-1IEC/EN61851-21-2, IEC/EN 62955, EN300328, EN 301489-1/-17,EN62479.

    Charging Interface

    Type 1 Gun(5M Cable) *2

    Special Protection

    Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection,
    Over/Under temperature protection

    Protection

    IP54, IK10

    Enclosure

    Galvanized steel

    Front Panel

    Temper glass

    Installation

    Wall-mount/Pole-mount

    Cooling

    Natural cooling

    Operating temperature

    -30˚C to +55˚C

    Product Dimensions

    515*365*185(L*W*H)mm

    Product Weight

    13.5kg

    Package Dimension

    610*415*250(L*W*H)mm

    Gross Weight

    15kg
