SAE J1772

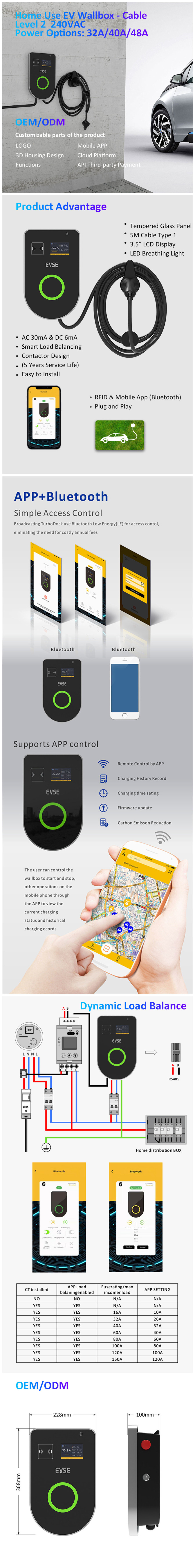

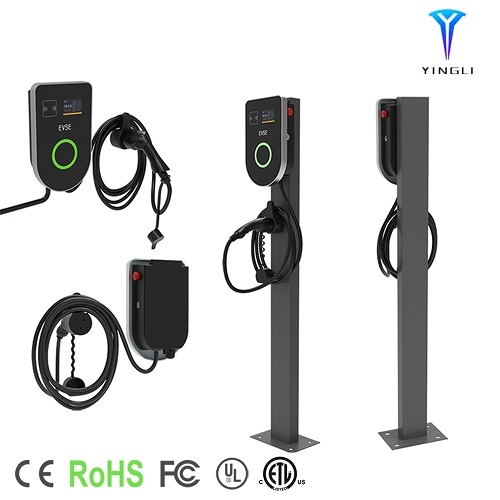

Level 2 32A AC Wallbox Smart Home Use EV Charger with Cable

Yingli Level 2 32A Home Use AC Wallbo is one of the best charging stations for home and private use with Type A+DC 6mA leakage protection.
This smart EV charger can also be controlled by Yingli APP through Bluetooth, which is simple and convenient.

Main Features:
Power: Up to 7.5kW
Output Current: 32A 1-Phase
Charging Outlet: SAE J1772 with 5M cable (Customizable)
RFID function,Bluetooh APPcontrol
Protection: IP54, IK10
Warranty: 2 years

    Charging capacity

    Up to 7.5KW

    Input/Output power

    240VAC-50/60Hz-32A-1phase

    RCD

    RCMU(Type A+ DC 6mA)/ Type B RCBB(Optional)

    Standby power

    <3W

    Measuring accuracy

    1%

    Communication

    Bluetooth/WIFI(Optional) APP

    User interface

    LED / LCD(3.5’’) / RFID(mifare iso& IEC 14443A)

    Input Plug

    NEMA 14-50(Optional)

    Certificate/Compliance

    NEC 625, SAE J1772, UL 817, UL 991, UL 2231, UL 225, and UL 2594.

    Charging Interface

    SAE J1772 32A 5M cable

    Special Protection

    Over current protection, Residual current protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection

    Protection

    IP54, IK10

    Enclosure

    Plastic PC940/ Galvanized steel

    Front Panel

    Temper glass

    Installation

    Wall-mount/Pole-mount

    Cooling

    Natural cooling

    Operating temperature

    -30˚C to +55˚C

    Product Dimensions

    320*230*100(L*W*H)mm

    Product Weight

    8kg

    Package Dimension

    480*340*290(L*W*H)mm

    Gross Weight

    9kg
